Model:
DC-01BM

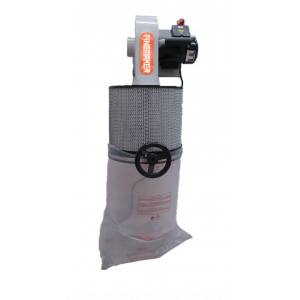

1HP Wall Mount Dust Collector
$289.00
The 1 Horsepower Wall Mount Dust Collector is a powerful and compact solution for efficiently managing dust and debris in your workshop or garage. With its robust 1-HP motor operating at 110 volts and 60 Hz, single-phase power, this wall-mounted unit delivers reliable performance for a variety of woodworking and dust-producing tasks. The motor speed of 3450 RPM ensures effective suction to keep your workspace clean.
Features:
- Motor size: 1 HP
- Phase: 1
- Voltage: 110V
- Hertz: 60
- Airflow capacity: 750 CFM
- Impeller size: 10" ALLOY DIE-CASTING
- Filter size: D: 385*355mm canister
- Intake ports: 4"
- Sound rating: < 85 dB
Availability:
In stock
SKU
DC-01BM
Main Configuration & Parameter
| Motor | 1-HP, 110-V, 60-Hz, Single Phase |
| Motor Speed | 3450 RPM |
| Bearings | Sealed & Permanently Lubricated |
| Cord Length | 7 Feet |
| Air Suction Capacity | 537CFM |
| Max. Static Pressure | 7.2" |
| Main Inlet Size | 4" |
| Impeller Type | Radial Fin |
| Impeller Size | 10" |
| Overall Dimensions | 20" X 18" X 45" |
| Weight | 52 lbs |
| Warranty | 3 Years |
Physical Features
Manuals
Please find the manual for the corresponding option. Password will be emailed upon payment confirmation.
| Name | Version | Size | Download |
|---|---|---|---|
| Manual for DC-01BM | 1.0 | 2.2 MB |  |
Q&A
More Information
| Model | DC-01BM |
|---|
